Plan Number: 07-071-05

Plan Type: 2 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $1,995.00
Extra Sets $50.00
Builder Sales Flyer (example) $150.00
PDF's $1,995.00
CAD Drawings $2,895.00

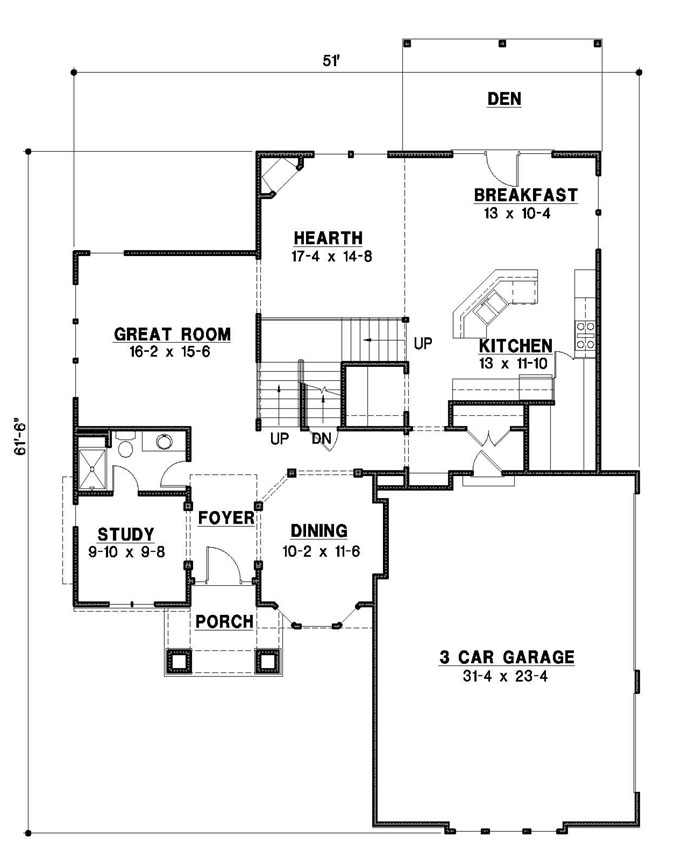

FIRST FLOOR: Square Feet: 1577

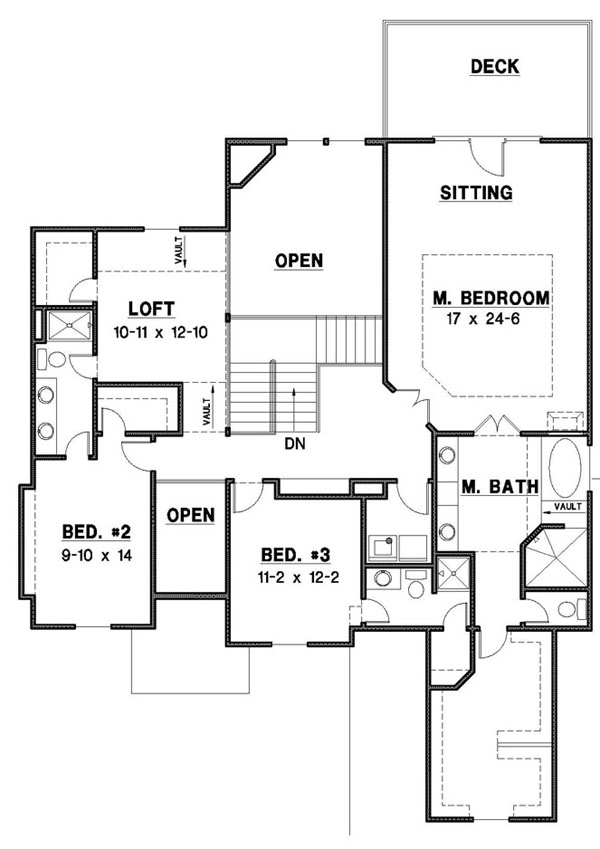

SECOND FLOOR: Square Feet: 1688


Plan Details
Square Feet:3265
Height:28ft. 3in.
Width:51ft.
Depth:61ft. 6in.
Main Roof Pitch:7/12
Basement Wall Height:9ft.
Master Bedroom Location:SECOND FLOOR
Laundry Location:SECOND FLOOR
Foyer Height:TWO STORY
Bedrooms:3 - 4
Full Bathrooms:4
Half Bathrooms:0
Stairs:1
Materials
Foundation:WALK OUT
Exterior Walls:2 x 4
Front Exterior Finish:STUCCO/FAUX STONE
Side and Rear Exterior Finish:SMART PANEL
Roof Framing:LUMBER
Windows:SINGLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		18ft. 2in.
 		6ft.
 		9ft. 4in.
DINING ROOM
 		9ft.
 		10ft. 2in.
 		11ft. 6in.
KITCHEN
 		9ft.
 		13ft.
 		11ft. 10in.
BREAKFAST
 		9ft.
 		13ft.
 		10ft. 4in.
HEARTH
 		18ft. 2in.
 		17ft. 4in.
 		14ft. 8in.
GREAT ROOM
 		9ft.
 		16ft. 2in.
 		15ft. 6in.
STUDY
 		9ft.
 		9ft. 10in.
 		9ft. 8in.
MASTER BEDROOM
 		9ft.
 		17ft.
 		24ft. 6in.
MASTER CLOSET
 		8ft.
 		10ft. 4in.
 		16ft.
LAUNDRY ROOM
 		8ft.
 		5ft. 8in.
 		5ft. 6in.
BEDROOM 2
 		8ft.
 		9ft. 10in.
 		14ft.
BEDROOM 3
 		8ft.
 		11ft. 2in.
 		12ft. 2in.
LOFT
 		10ft.
 		10ft. 11in.
 		12ft. 10in.
GARAGE
 		10ft.
 		31ft. 4in.
 		23ft. 4in.
Garage SIDE ENTRY Square Feet: 748
 		Stalls: 3

  • Grand entry
  • Vaulted / volume / dramatic ceilings
  • Formal dining room
  • Study / office / computer room
  • Kitchen island
  • Side-entry garage
  • Oversized garage (3+)
  • Loft / balcony
  • Oversized master closet
  • Master custom shower
  • Traditional house plan

    • This house plan may not be available in your area.
     This house plan was designed based on the building codes applicable in the year of its design.
