Plan Number: 07-071-02

Plan Type: 2 STORY HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $2,095.00
Extra Sets $50.00
Builder Sales Flyer (example) $150.00
PDF's $2,095.00
CAD Drawings $2,995.00

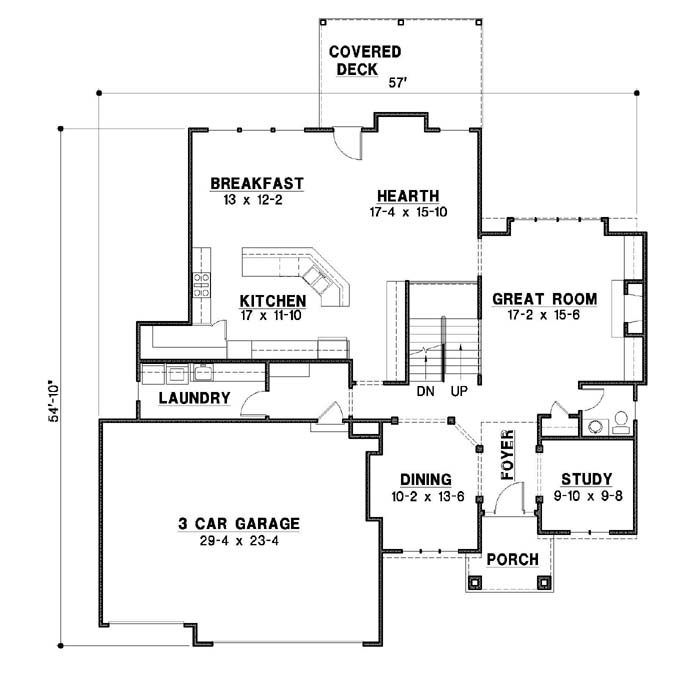

FIRST FLOOR: Square Feet: 1742

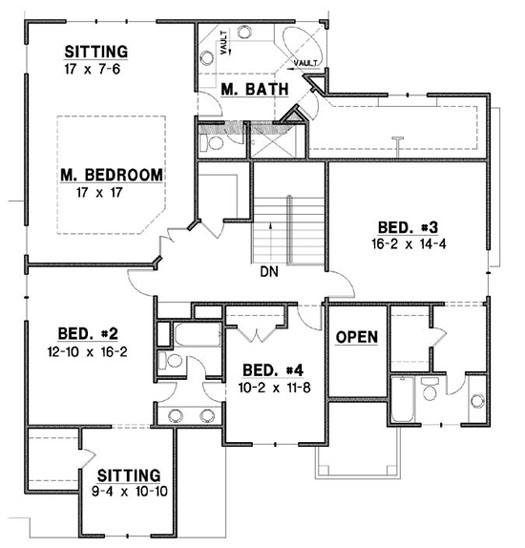

SECOND FLOOR: Square Feet: 1871


Plan Details
Square Feet:3706
Height:29ft.
Width:57ft.
Depth:54ft. 10in.
Main Roof Pitch:7/12
Basement Wall Height:9ft.
Master Bedroom Location:SECOND FLOOR
Laundry Location:FIRST FLOOR
Foyer Height:TWO STORY
Bedrooms:4
Full Bathrooms:3
Half Bathrooms:1
Stairs:1
Materials
Foundation:DAYLIGHT
Exterior Walls:2 x 4
Front Exterior Finish:STUCCO/FAUX STONE
Side and Rear Exterior Finish:SMART PANEL
Roof Framing:LUMBER
Windows:CASEMENT
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		18ft.
 		6ft.
 		9ft. 4in.
STUDY
 		10ft.
 		9ft. 10in.
 		9ft. 8in.
DINING ROOM
 		10ft.
 		10ft. 2in.
 		13ft. 6in.
KITCHEN
 		10ft.
 		17ft.
 		11ft. 10in.
BREAKFAST
 		10ft.
 		13ft.
 		12ft. 2in.
HEARTH
 		18ft.
 		17ft. 4in.
 		15ft. 10in.
GREAT ROOM
 		10ft.
 		17ft. 2in.
 		15ft. 6in.
LAUNDRY ROOM
 		10ft.
 		13ft. 4in.
 		6ft.
MASTER BEDROOM
 		9ft.
 		17ft.
 		17ft.
SITTING ROOM
 		8ft.
 		17ft.
 		7ft. 6in.
MASTER CLOSET
 		8ft.
 		18ft. 2in.
 		6ft. 4in.
BEDROOM 2
 		8ft.
 		12ft. 10in.
 		16ft. 2in.
BEDROOM 3
 		8ft.
 		16ft. 2in.
 		14ft. 4in.
BEDROOM 4
 		8ft.
 		10ft. 2in.
 		11ft. 8in.
GARAGE
 		11ft.
 		29ft. 4in.
 		23ft. 4in.
Garage FRONT ENTRY Square Feet: 675
 		Stalls: 3

  • Suitable for a down-sloping lot
  • Grand entry
  • Formal dining room
  • Study / office / computer room
  • Kitchen island
  • Covered rear porch
  • Master with sitting room
  • Teen suite/Jack & Jill bath
  • Traditional house plan

    • This house plan may not be available in your area.
     This house plan was designed based on the building codes applicable in the year of its design.
