Plan Number: 07-045-01

Plan Type: RANCH HOUSE PLAN

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets) $1,995.00
Extra Sets $50.00
Builder Sales Flyer (example) $150.00
PDF's $1,995.00
CAD Drawings $2,895.00

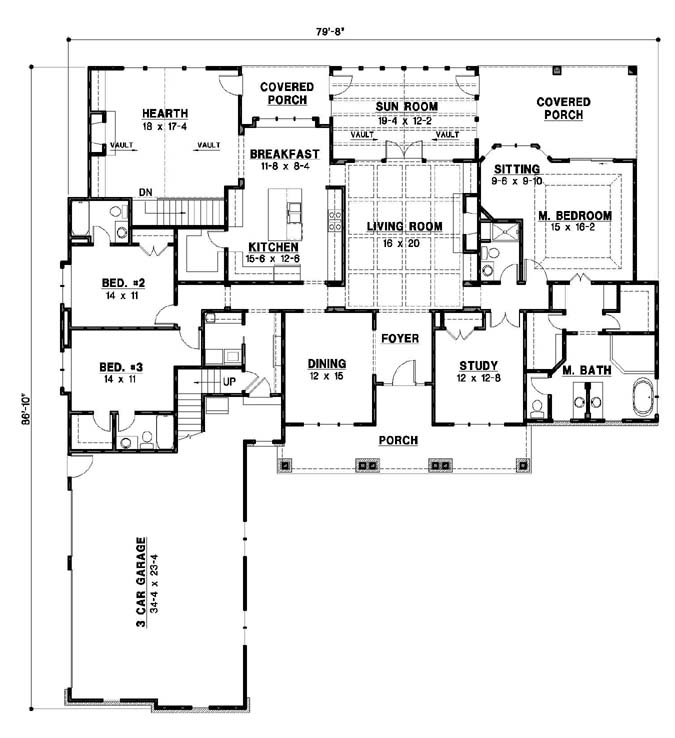

FIRST FLOOR: Square Feet: 3038


(FINISHED STAIRWELL): Square Feet: 69

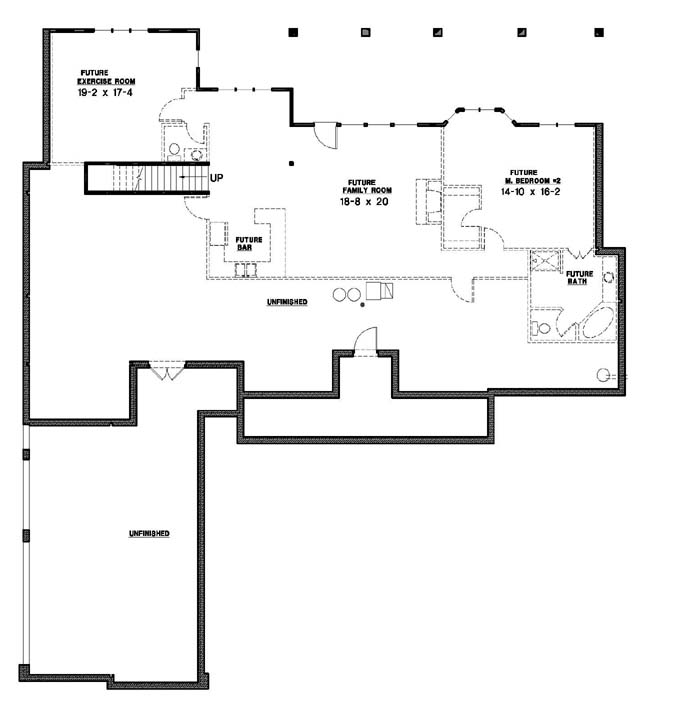

LOWER LEVEL:


Plan Details
Square Feet:3038
Height:28ft. 5in.
Width:79ft. 8in.
Depth:86ft. 10in.
Main Roof Pitch:8/12
Basement Wall Height:10ft.
Master Bedroom Location:FIRST FLOOR
Laundry Location:FIRST FLOOR
Foyer Height:ONE STORY
Bedrooms:3 - 4
Full Bathrooms:4
Half Bathrooms:0
Stairs:2
Materials
Foundation:WALK OUT
Exterior Walls:2 x 4
Front Exterior Finish:LAP / STONE
Side and Rear Exterior Finish:LAP
Roof Framing:LUMBER
Windows:DOUBLE HUNG
Shingles:COMPOSITION

Room Height Width Depth
FOYER
 		10ft.
 		7ft. 8in.
 		9ft. 6in.
LIVING ROOM
 		10ft.
 		16ft.
 		20ft.
DINING ROOM
 		10ft.
 		12ft.
 		15ft.
KITCHEN
 		10ft.
 		15ft. 6in.
 		12ft. 6in.
BREAKFAST
 		10ft.
 		11ft. 8in.
 		8ft. 4in.
HEARTH
 		VAULTED 18ft.
 		17ft. 4in.
SUN ROOM
 		VAULTED 19ft. 4in.
 		12ft. 2in.
STUDY
 		10ft.
 		12ft.
 		12ft. 8in.
MASTER BEDROOM
 		12ft.
 		15ft.
 		16ft. 2in.
MASTER SITTING ROOM
 		10ft.
 		9ft. 6in.
 		9ft. 10in.
MASTER CLOSET - HERS
 		10ft.
 		5ft.
 		7ft. 10in.
MASTER CLOSET - HIS
 		10ft.
 		4ft. 10in.
 		6ft. 6in.
LAUNDRY ROOM
 		10ft.
 		5ft. 2in.
 		7ft. 4in.
BEDROOM 2
 		10ft.
 		14ft.
 		11ft.
BEDROOM 3
 		10ft.
 		14ft.
 		11ft.
GARAGE
 		11ft.
 		34ft. 4in.
 		23ft. 4in.
Garage SIDE ENTRY Square Feet: 916
 		Stalls: 3

  • Covered porch
  • Vaulted / volume / dramatic ceilings
  • Study
  • Formal dining room
  • Master with sitting room
  • Screened porch / sunroom
  • Multiple staircases
  • Nook / breakfast area
  • Walk-in pantry
  • Kitchen island
  • Main floor laundry
  • Unfinished/future space
  • Country house plan

    • This house plan may not be available in your area.
     This house plan was designed based on the building codes applicable in the year of its design.
