Plan Number: 03-140-05

Plan Type: MULTI-FAMILY

(click image for rear elevation)
 QuantityPrice
Building Set (8 Sets)   $1,095.00
Extra Sets   $40.00
Builder Sales Flyer (example)   $75.00




Plan Details
Square Feet:2608
Height:26ft. 8in.
Width:40ft.
Depth:44ft. 4in.
Main Roof Pitch:5/12
Materials
Foundation:SLAB
Exterior Walls:2 x 4
Front Exterior Finish:STUCCO
Side and Rear Exterior Finish:LAP
Roof Framing:TRUSS
Windows:DOUBLE HUNG
Shingles:COMPOSITION




LEFT SIDE UNIT

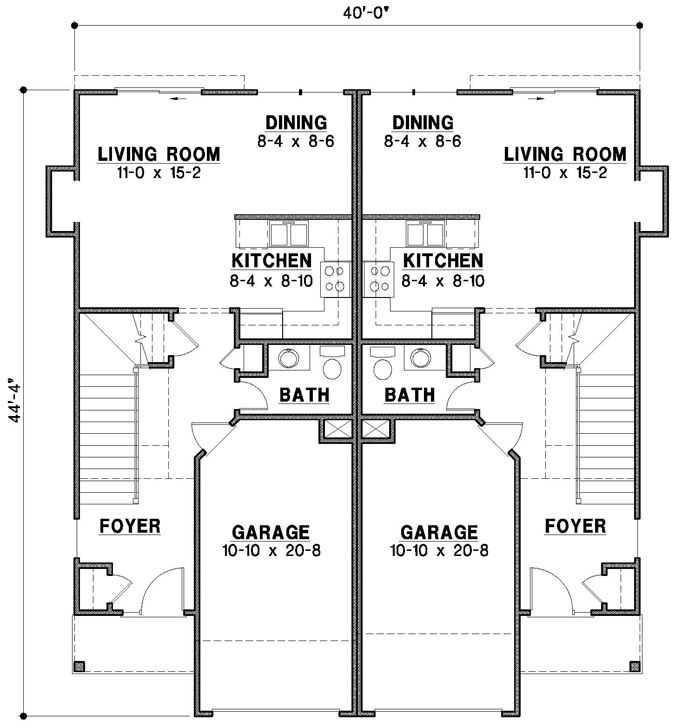

FIRST FLOOR: Square Feet: 593

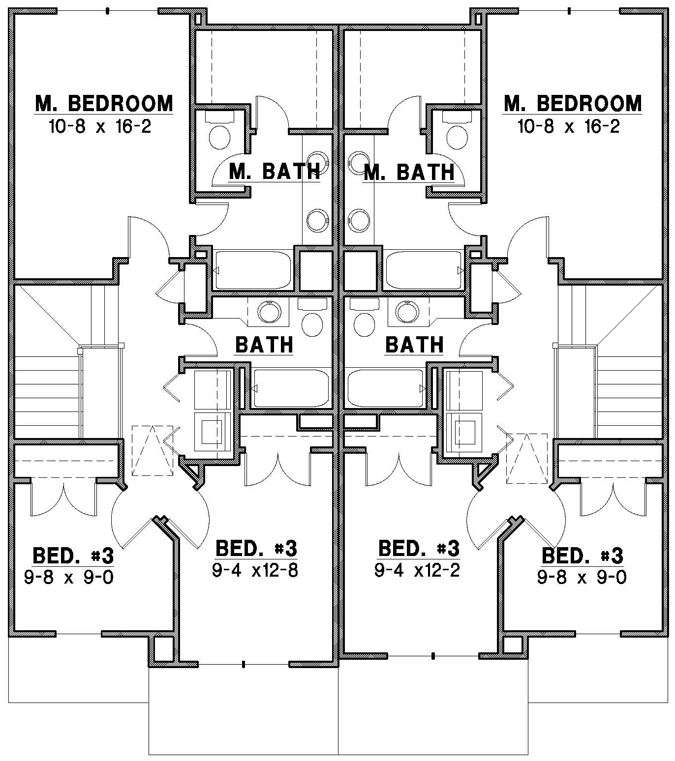

SECOND FLOOR: Square Feet: 714



Unit Details
Square Feet:1307
Width:20ft.
Depth:44ft. 4in.
Master Bedroom Location:SECOND FLOOR
Laundry Location:SECOND FLOOR
Foyer Height:ONE STORY
Bedrooms:3
Full Bathrooms:2
Half Bathrooms:1
Stairs:1
Materials
Foundation:
Exterior Walls:
Front Exterior Finish:
Side and Rear Exterior Finish:
Roof Framing:
Windows:
Shingles:

Room Height Width Depth
FOYER
9ft.
8ft. 2in.
7ft. 6in.
LIVING ROOM
9ft.
11ft.
15ft. 2in.
DINING ROOM
9ft.
8ft. 4in.
8ft. 6in.
KITCHEN
9ft.
8ft. 4in.
8ft. 10in.
MASTER BEDROOM
8ft.
10ft. 8in.
16ft. 2in.
MASTER CLOSET
8ft.
8ft. 4in.
6ft.
BEDROOM 2
8ft.
9ft. 4in.
12ft. 8in.
BEDROOM 3
8ft.
9ft. 8in.
9ft.
GARAGE
9ft.
10ft. 10in.
20ft. 8in.
Garage FRONT ENTRY Square Feet: 233
Stalls: 2



RIGHT SIDE UNIT

FIRST FLOOR: Square Feet: 593



SECOND FLOOR: Square Feet: 708



Unit Details
Square Feet:1301
Width:20ft.
Depth:44ft. 4in.
Master Bedroom Location:SECOND FLOOR
Laundry Location:SECOND FLOOR
Foyer Height:ONE STORY
Bedrooms:3
Full Bathrooms:2
Half Bathrooms:1
Stairs:1
Materials
Foundation:
Exterior Walls:
Front Exterior Finish:
Side and Rear Exterior Finish:
Roof Framing:
Windows:
Shingles:

Room Height Width Depth
FOYER
9ft.
8ft. 2in.
7ft. 6in.
LIVING ROOM
9ft.
11ft.
15ft. 2in.
DINING ROOM
9ft.
8ft. 4in.
8ft. 6in.
KITCHEN
9ft.
8ft. 4in.
8ft. 10in.
MASTER BEDROOM
8ft.
10ft. 8in.
16ft. 2in.
MASTER CLOSET
8ft.
8ft. 4in.
6ft.
BEDROOM 2
8ft.
9ft. 4in.
12ft. 2in.
BEDROOM 3
8ft.
9ft. 8in.
9ft.
GARAGE
9ft.
10ft. 10in.
20ft. 8in.
Garage FRONT ENTRY Square Feet: 233
Stalls: 1


This multi-family plan has 2 separate units. For more details, please contact us and we will be happy to assist you.
